Definitive Technology Dymension DC-80 MAX

Premium In-Ceiling Speaker with 8" Pivoting Woofer

Dymension CI™ MAX premium in-ceiling speakers deliver precise sound for high-performance home theater and whole-home systems, with features like our patented pivoting woofer; discreet, flush-mount design; and robust weather protection.

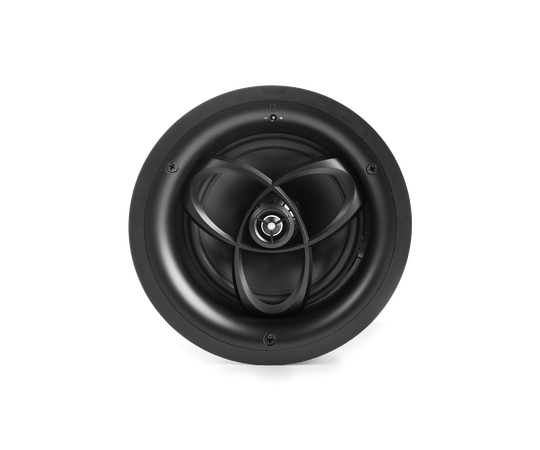

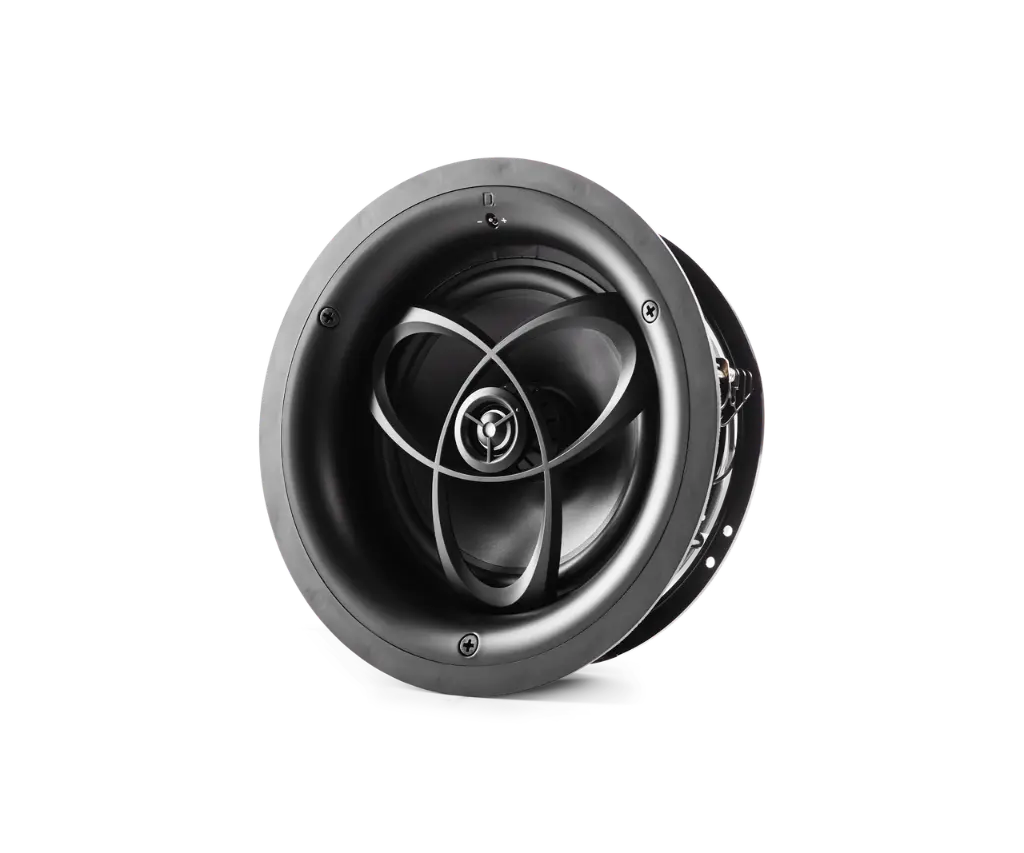

• 8.0" Pivoting BDSS Woofer with Linear Response Waveguide™
• 1" Pivoting Aluminum Oxide Dome Tweeter
• Toolless Installation
• Flush, Border-Free Design
• IP55-Rated

An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

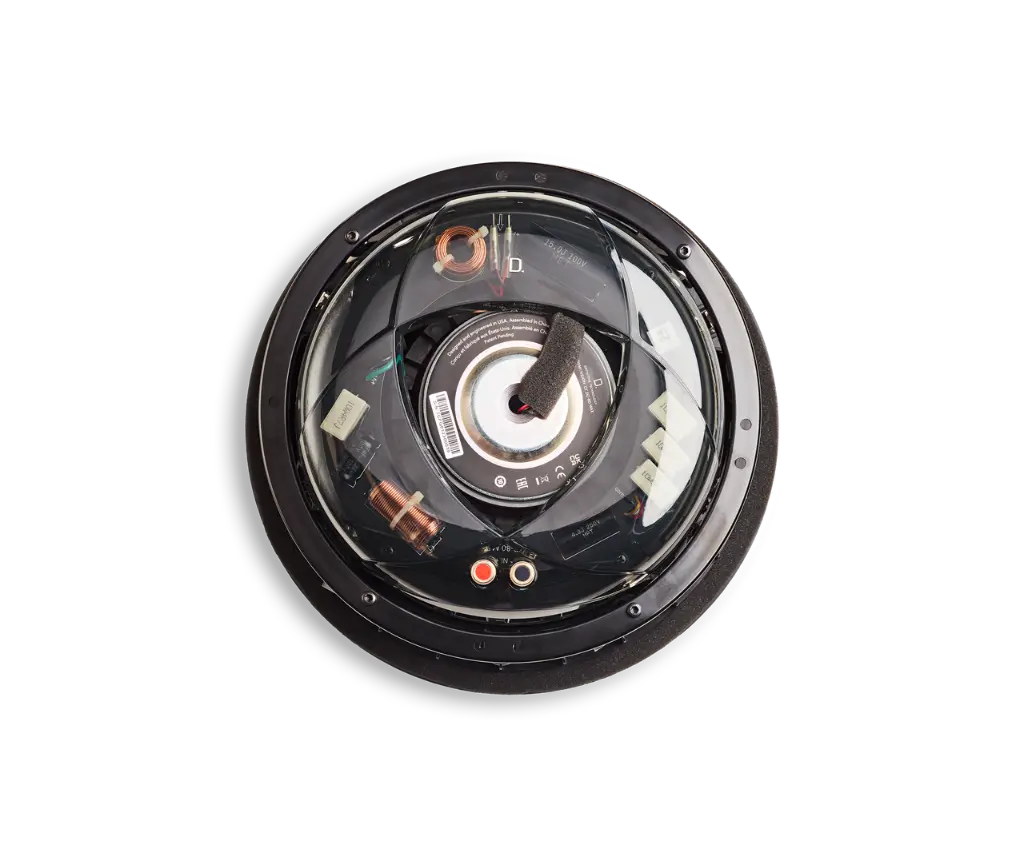

A premium crossover network ensures balanced voicing and smooth response.

A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.

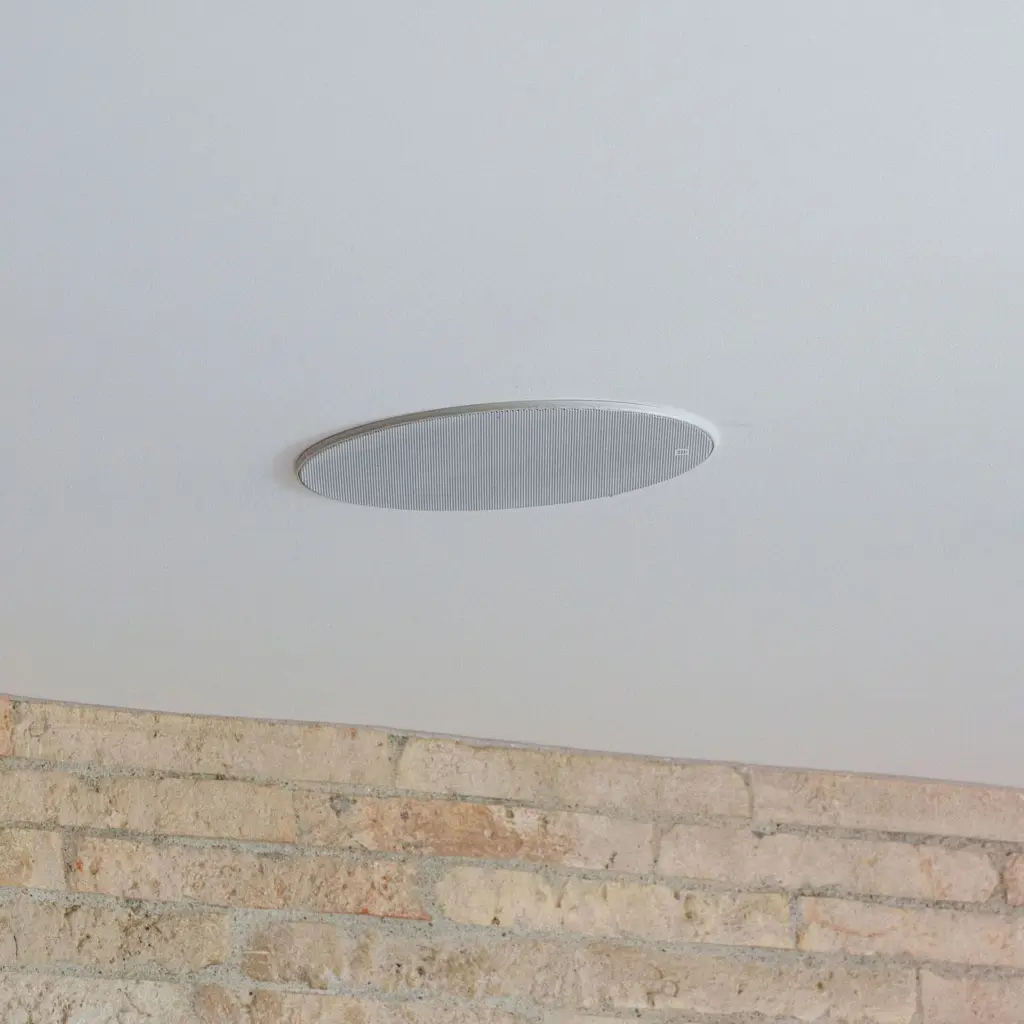

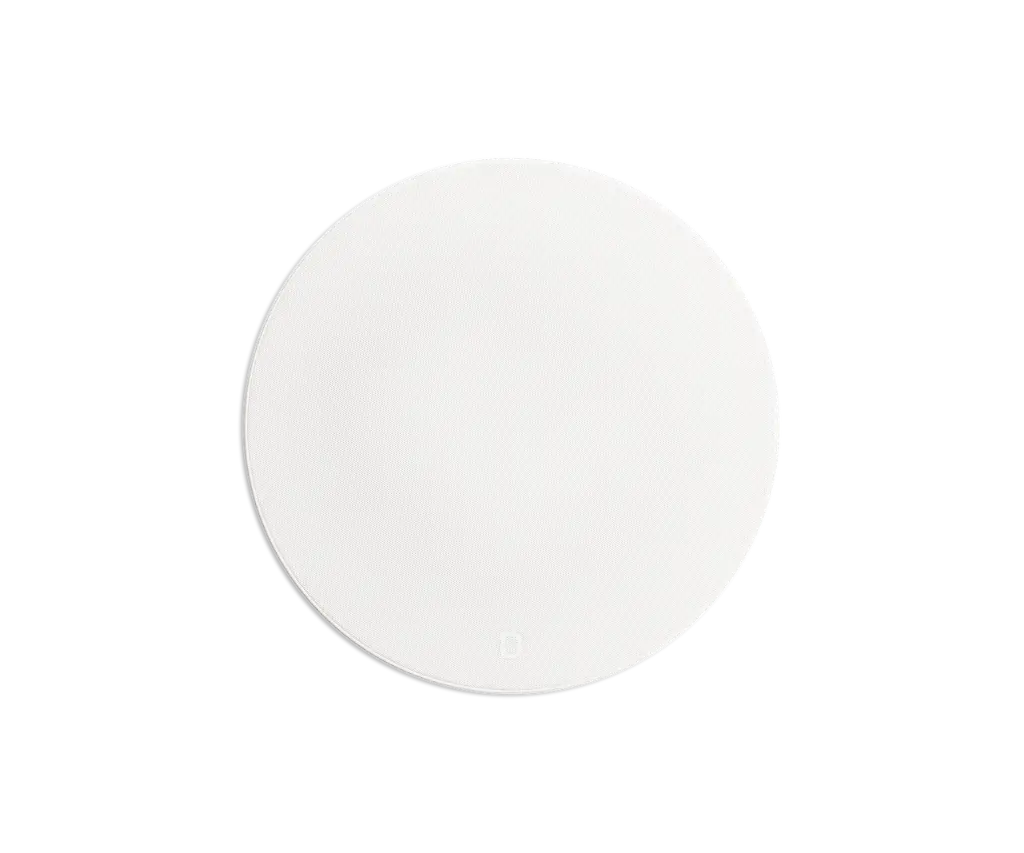

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

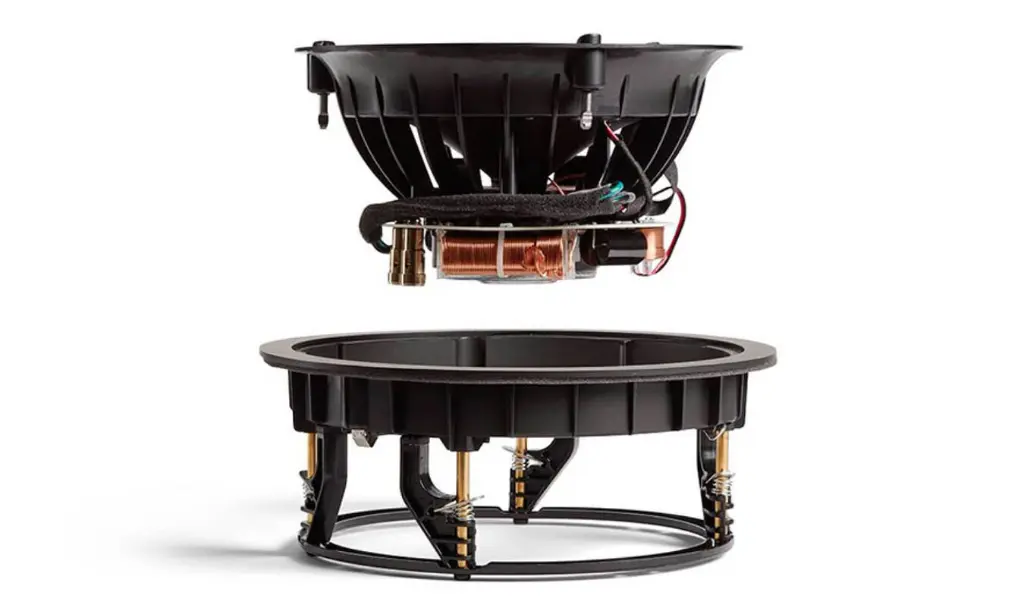

Toolless Installation for fast, easy installs

A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.

Timbre-Matching for cohesive sound system

With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theater system of your dreams.

• Product Dimensions (Diameter)11.80 in (299.8mm)
• Cut- Out Dimensions (Diameter)10.57 in (268.6 mm)
• Mounting Depth5.34 in (135.7 mm)
• Weight6.48 lbs (2.94 kg)
• ColorWhite Paintable Grille
• Grille materialMicro-Perforated Magnetic Grille
• Tweeter1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass8 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
• Frequency response26 Hz–30 kHz (-10 dB)
  43 Hz–25 kHz (-3 dB)
• Nominal impedance6Ω
• Sensitivity88dB (2.83V/1m)
• Recommended Amplifier Power20-150W
• IP Rating (Ingress Protection)IP55
• Warranty5 years
