Definitive Technology Dymension DC-80 MAX SURROUND
Premium In-Ceiling Surround Speaker with Dual Tweeters and 8" Pivoting Woofer
Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.
A premium crossover network ensures balanced voicing and smooth response.
A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.

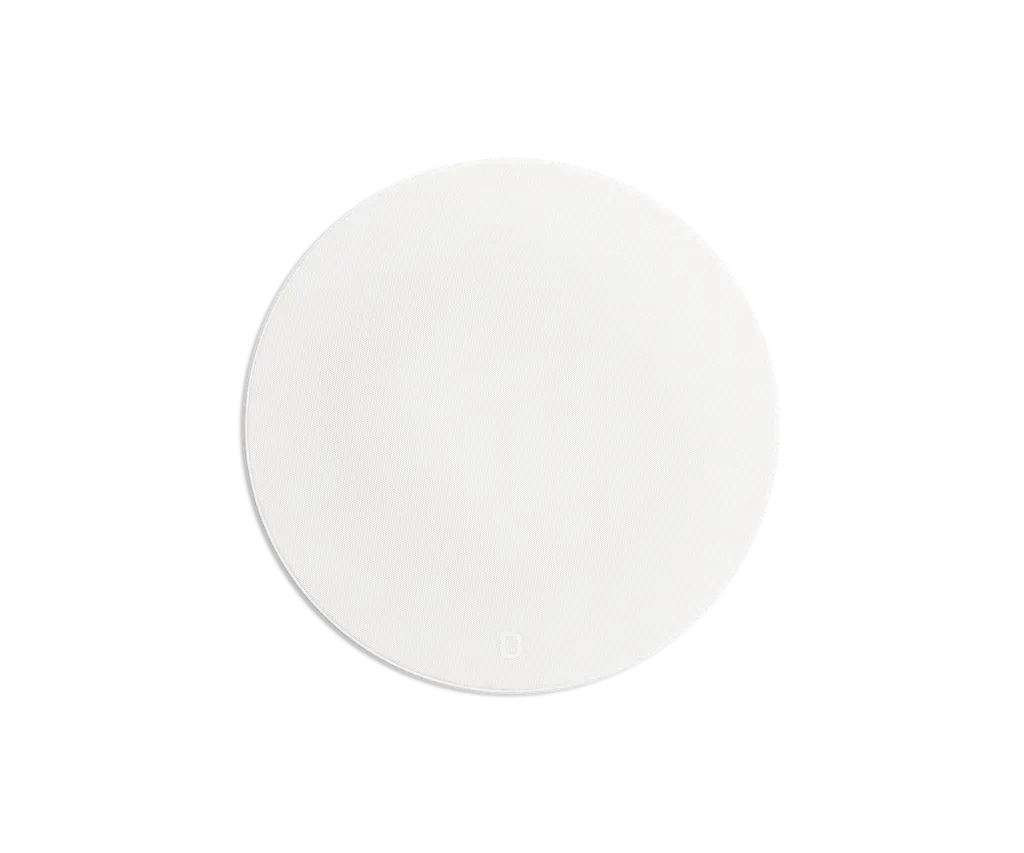

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.
The Dymension CI™ DC-80 MAX SUR premium in-ceiling surround speaker delivers expansive overhead sound for high-performance home theater systems, thanks to pivoting drivers, dual tweeters, and discreet aesthetics.

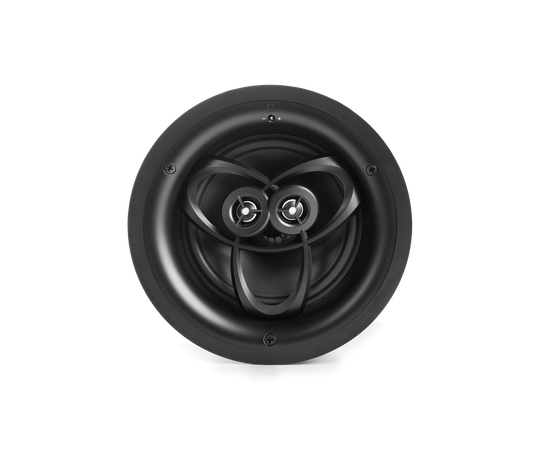

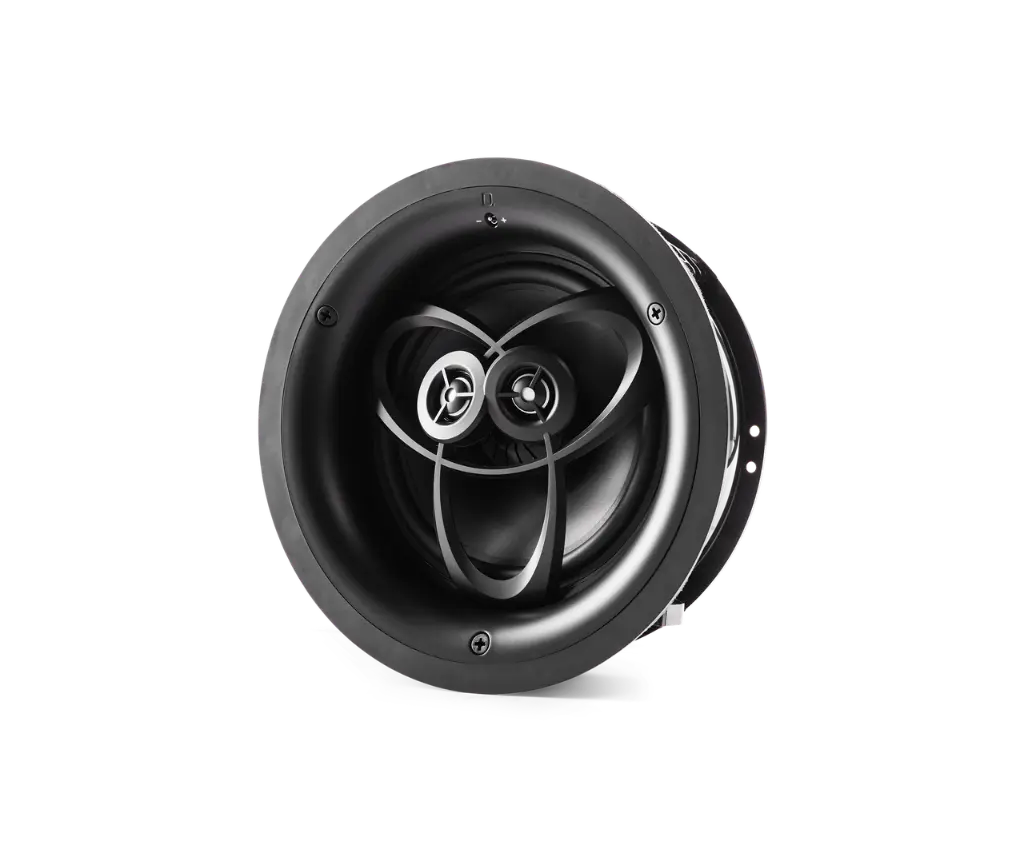

- 8.0" Pivoting BDSS Woofer with Linear Response Waveguide™
- Dual 1" Pivoting Aluminum Oxide Dome Tweeters
- Toolless Installation
- Flush, Border-Free Design
- IP55-Rated
Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.
A premium crossover network ensures balanced voicing and smooth response.
A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.
An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.
Toolless Installation for fast, easy installs

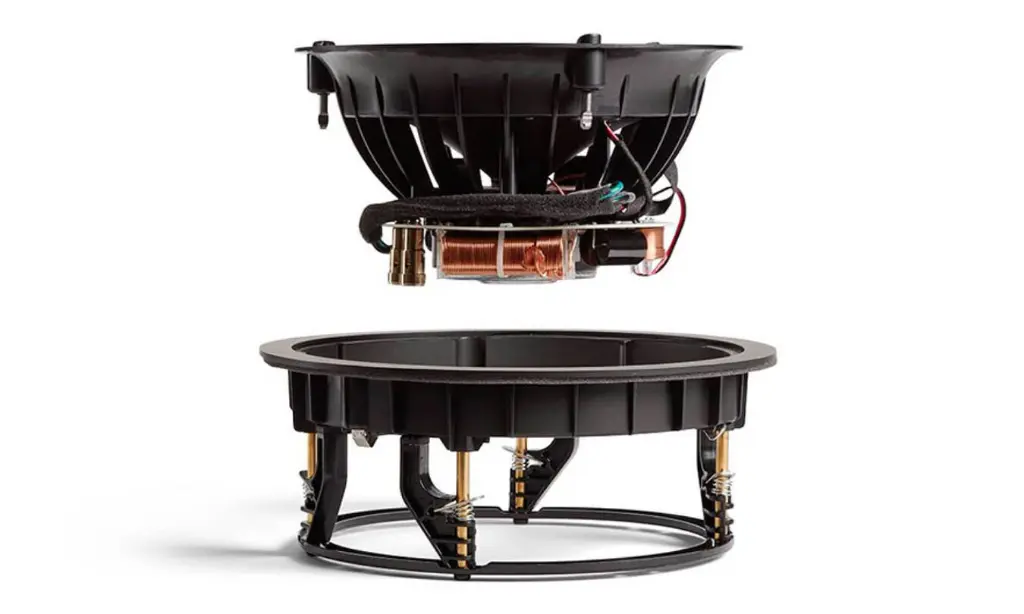

A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.
Timbre-Matching for cohesive sound system
With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theater system of your dreams.
- Product Dimensions (Diameter)11.80 in (299.8mm)
- Cut- Out Dimensions (Diameter)10.57 in (268.6 mm)
- Mounting Depth5.34 in (135.7 mm)
- Weight6.48 lbs (2.94 kg)
- ColorWhite Paintable Grille
- Grille materialMicro-Perforated Magnetic Grille
- Tweeter1 in Pivoting Aluminum Oxide Dome Tweeter
- Midrange/Midbass8 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
- Frequency response26 Hz–30 kHz (-10 dB)
43 Hz–25 kHz (-3 dB) - Nominal impedance6Ω
- Sensitivity88dB (2.83V/1m)
- Recommended Amplifier Power20-150W
- IP Rating (Ingress Protection)IP55
- Warranty5 years
